GReddy External O/C Thermo. Block (M18) - for Existing Relocation Kits
12401199 - GReddy External O/C Thermo. Block

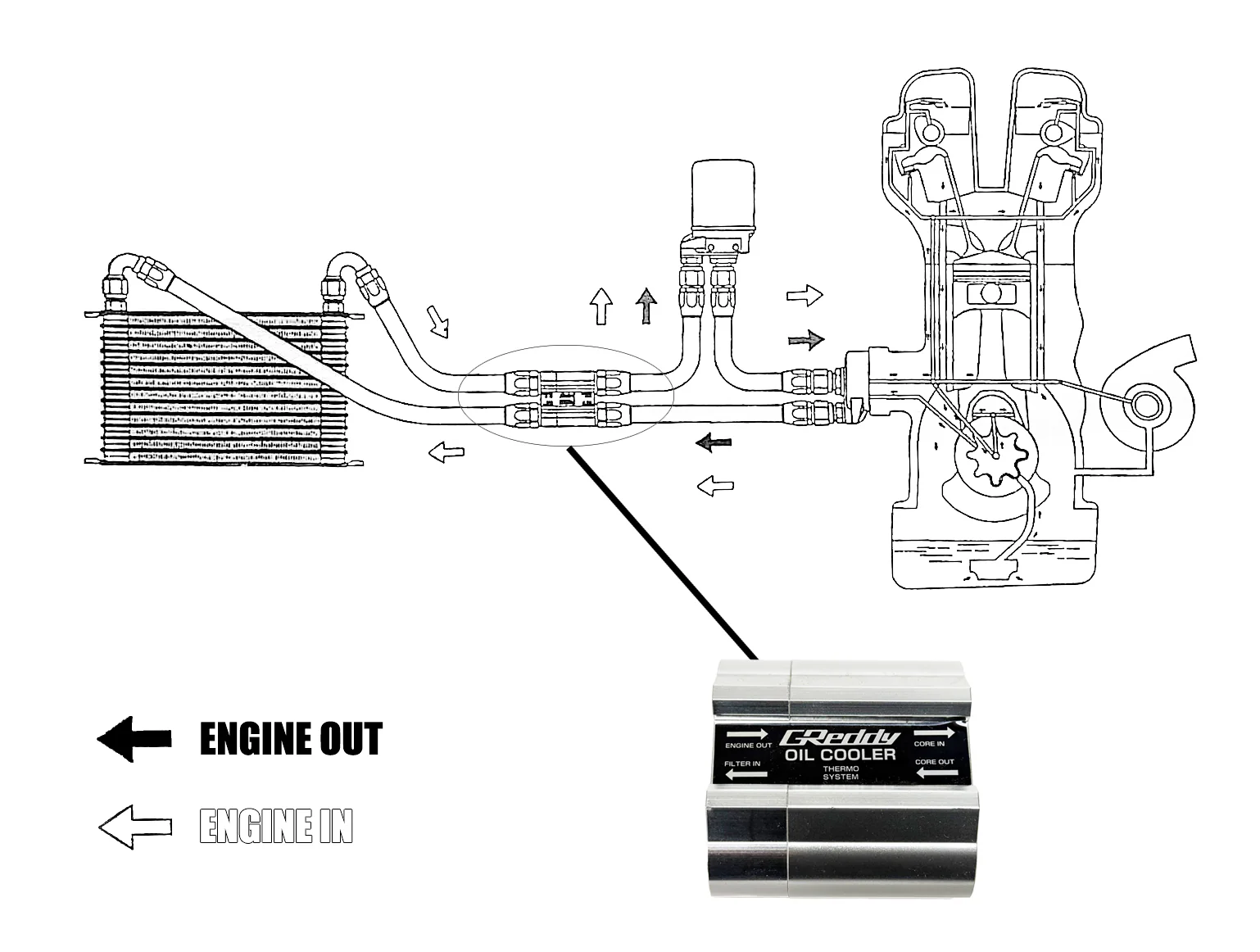

GReddy External Thermostatic Oil Block with 4x M18xP1.5 O-ring port connections, to convert a GReddy Oil Filter Relocation Kit to a thermostatically controlled Oil Cooler Kit core. (Not needed if you are already using a Type I or Type E Oil Block Adapter)
To be used to convert Application Specific GReddy Oil Relocation kits with slip-on hoses or when using GReddy Type B/F Relocation block with a Type G Filter Relocation block and wanting to add an Oil Cooler Core with a Thermostat.
Optional M18xP1.5 O-ring Fittings available ( 4x req.):
- 12005113 - Slip-on -10 Fitting (application specific type)
- 12402150 - Direct -10 Straight Fitting
- 12005110 - Std. -10 AN (Gold) Fitting
- 12402150 - Direct -10 Straight Fitting
- 12005110 - Std. -10 AN (Gold) Fitting
*with Oil Block Adapter Type-B or Type-F p/n 12401111, 12401129, 12401131, or 12401135 and Type-G 12401139, or 12401183 (sold separately)
Replacement Parts for Oil Blocks (HERE)
Select M18xP1.5 O-ring Fitting Type
From $120.00
GReddy External O/C Thermo. Block (M18) - for Existing Relocation Kits—
$120.00
More Images
GReddy External O/C Thermo. Block (M18) - for Existing Relocation Kits
12401199 - GReddy External O/C Thermo. Block
GReddy External Thermostatic Oil Block with 4x M18xP1.5 O-ring port connections, to convert a GReddy Oil Filter Relocation Kit to a thermostatically controlled Oil Cooler Kit core. (Not needed if you are already using a Type I or Type E Oil Block Adapter)
To be used to convert Application Specific GReddy Oil Relocation kits with slip-on hoses or when using GReddy Type B/F Relocation block with a Type G Filter Relocation block and wanting to add an Oil Cooler Core with a Thermostat.
Optional M18xP1.5 O-ring Fittings available ( 4x req.):
- 12005113 - Slip-on -10 Fitting (application specific type)
- 12402150 - Direct -10 Straight Fitting
- 12005110 - Std. -10 AN (Gold) Fitting
- 12402150 - Direct -10 Straight Fitting
- 12005110 - Std. -10 AN (Gold) Fitting
*with Oil Block Adapter Type-B or Type-F p/n 12401111, 12401129, 12401131, or 12401135 and Type-G 12401139, or 12401183 (sold separately)
Replacement Parts for Oil Blocks (HERE)
